24" Wide Built-In Commercial Beverage Center, ADA Compliant
Next day shipping
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(81cm H x 60cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 290.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101052274 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.6 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
|||||
| Exterior | |||||
|
FEATURES
Glass door all-refrigerator designed for use in commercial settings
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

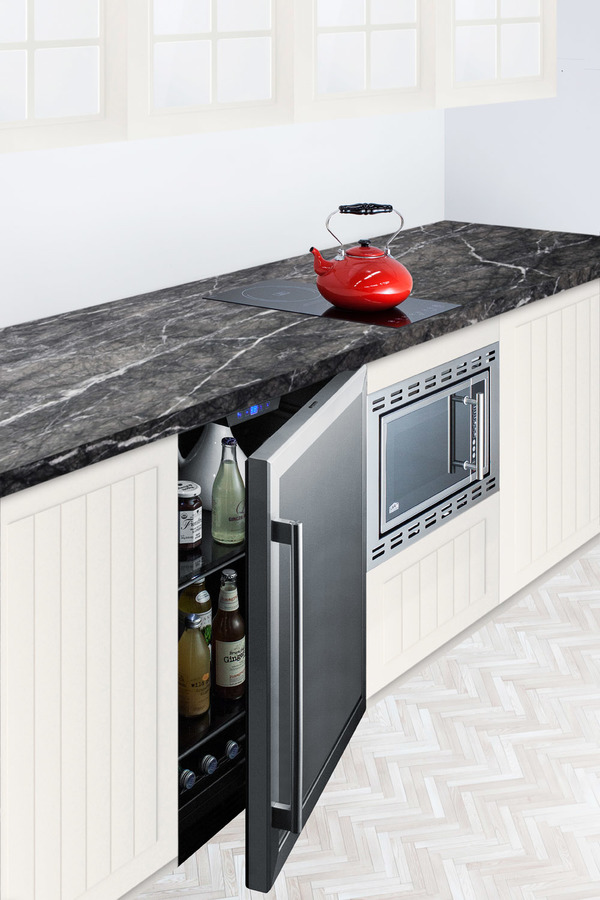

32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Keyed lock for a secure interior

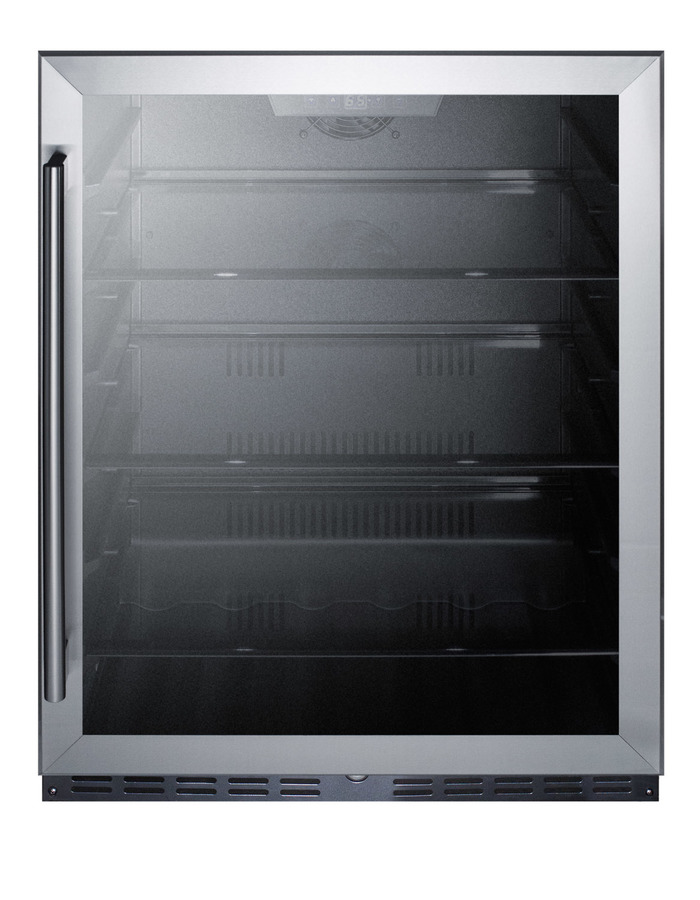

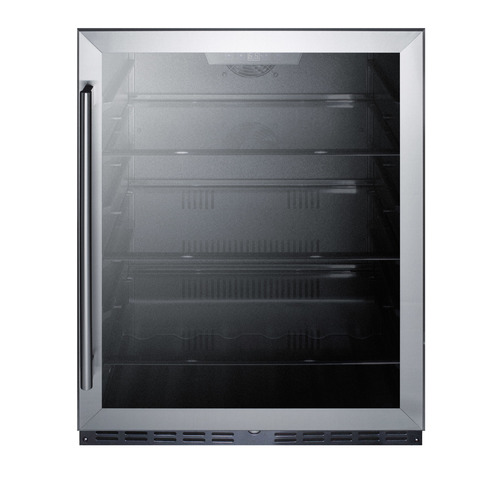

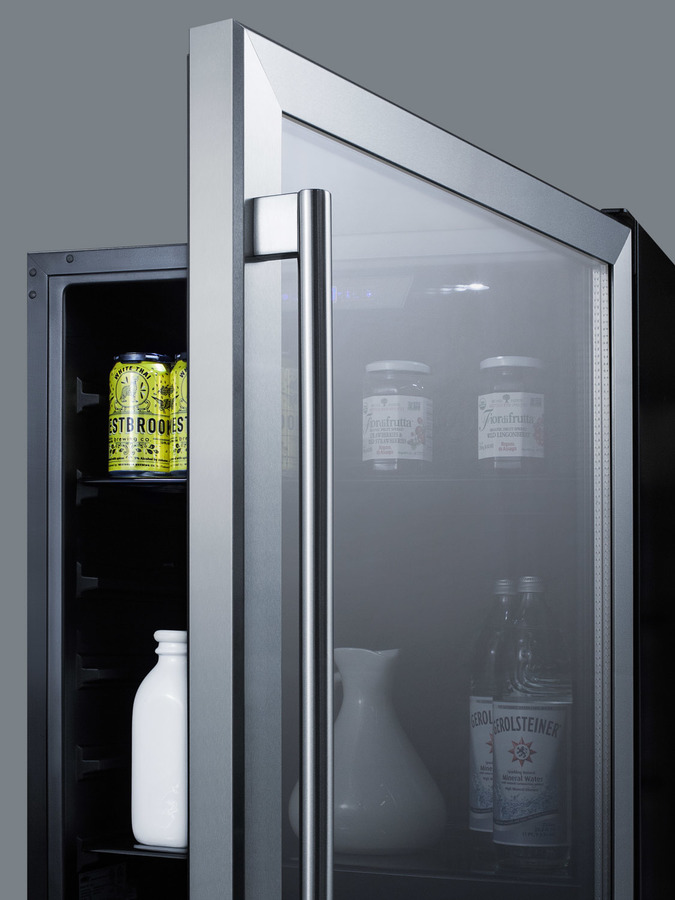

Stainless steel trimmed glass door offers a heat-safe view of the interior

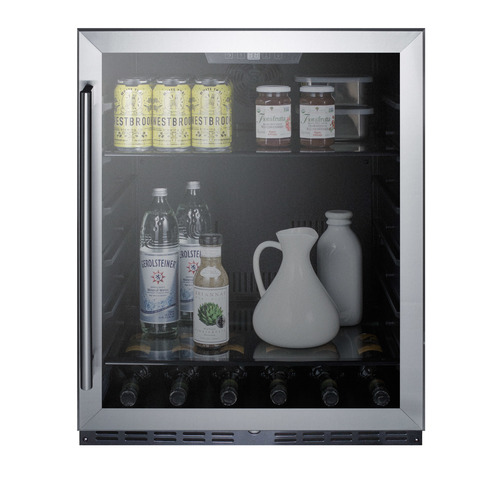

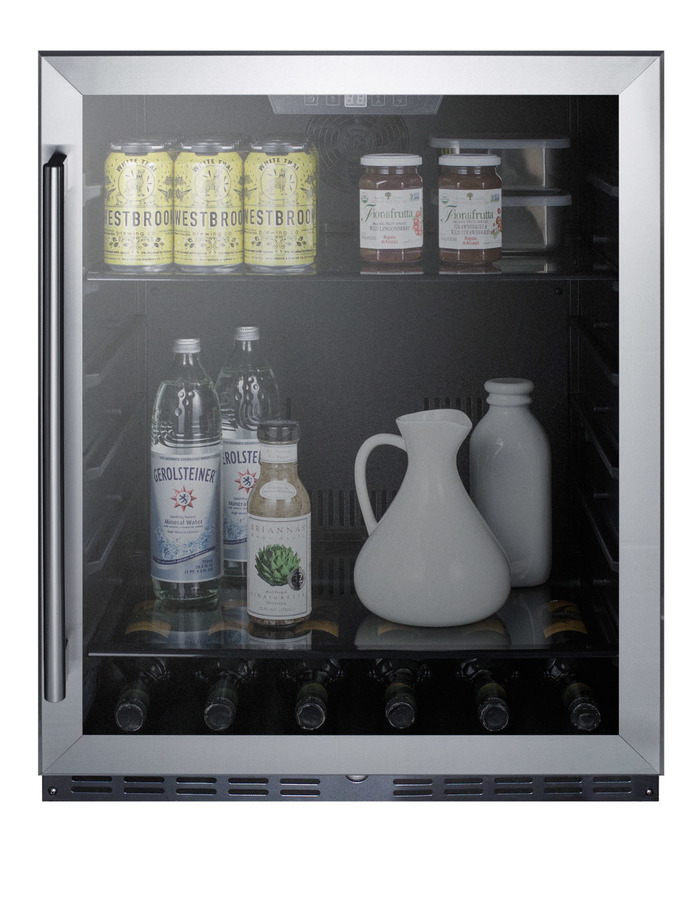

Perfectly designed to store and display beverages in a variety of commercial settings, including energy drinks and water bottles in gyms, refreshments in lobbies, sparkling water and juices in restaurants, and much more

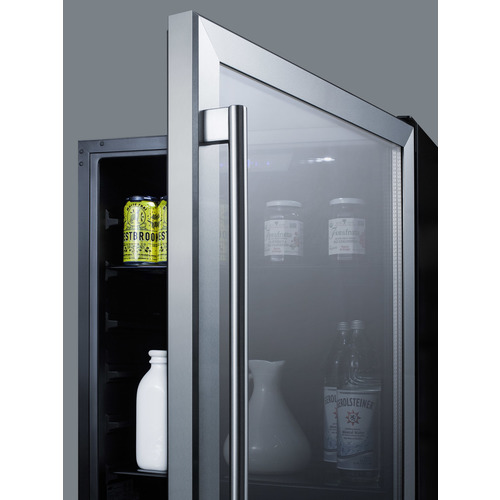

Stainless steel handle completes the look
No-frost operation for minimum user maintenance
Electronic controls located inside the unit for precise temperature management
Efficient and attractive presentation with LED lighting
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Floor is specially slotted to store wine and other bottles safely in place
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
User-reversible door swing for added flexibility
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Space-saving design that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

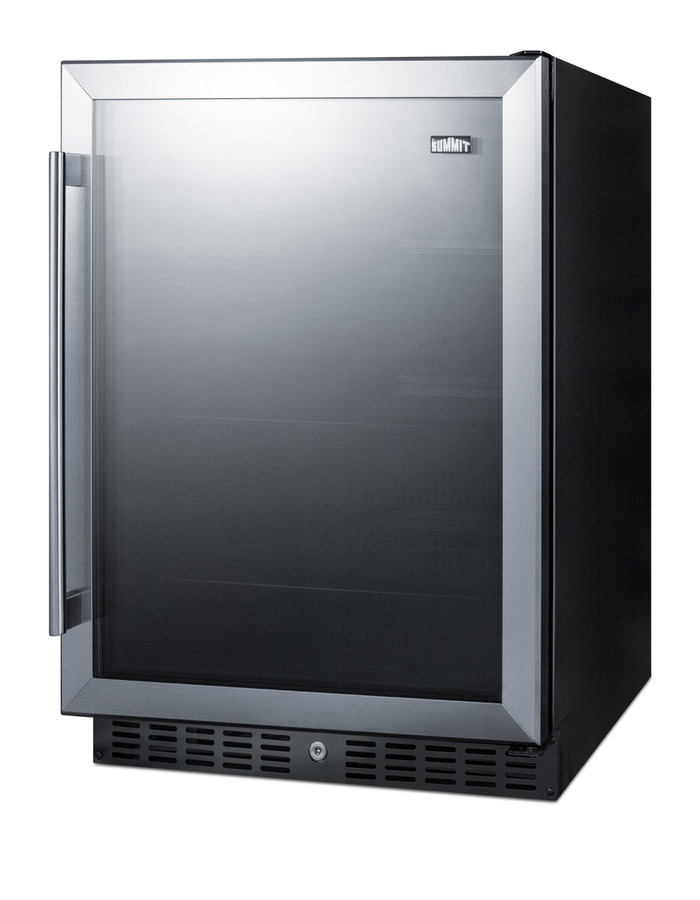

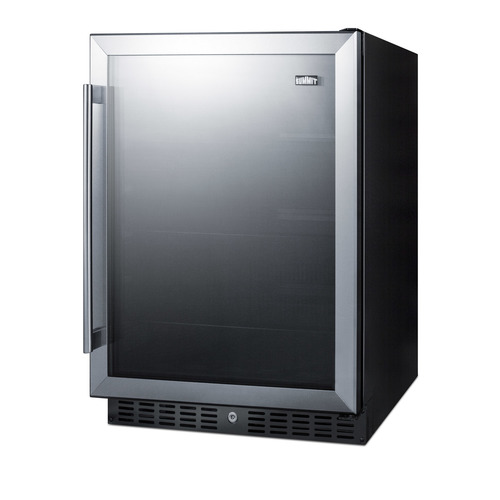

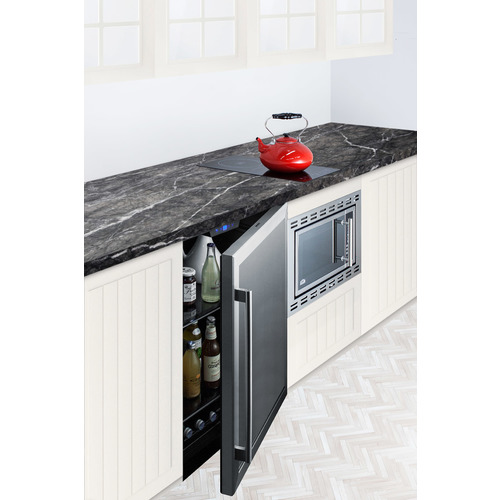

SUMMIT's extensive selection of built-in refrigerators brings quality and style to commercial settings designed to incorporate lower ADA compliant counter height. Sized with a convenient 24" footprint, the AL57G is just 32" high to fit under lower counters complying with ADA guidelines for accessibility in commercial settings. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings. Inside, the AL57G utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL57G refrigerator is ETL-S listed to NSF-7 commercial standards. With its deluxe style and user-friendly features, this unit is the perfect choice for bars, restaurants, hotel lobbies, waiting areas, and other settings looking to store beverages under the proper conditions.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
